Near Field Communication

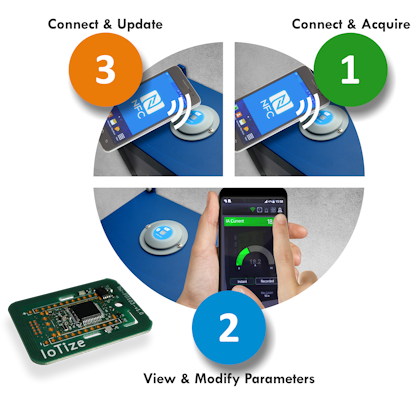

NFC 3-stroke configuration with TapNLink

TapNLink NFC modules for instant contactless communication that links IOT devices and mobiles

TapNLink products use a Near Field Communication (NFC) Type-5 passive device (a.k.a. a tag) for contactless communication with mobiles at a range of upto 4 cm. NFC improves the discretion, ease-of-use, security and power consumption of wireless implementations.

With TapNLink NFC modules, this contactless technology can be used as the principe channel of communications. TapNLink NFC modules enable 3-stroke configuration - a secure, intuitive method for efficiently retrieving and updating appliance configurations. Our NFC modules also offer energy harvesting, allowing them to be powered entirely by mobile devices during communication.

All TapNLink modules benefit from our no-code / low-code NFC solution and support rapid integration in your electronic designs with:

  • Qualified wireless hardware and antennas
  • Rapid, secure implementation by configuration
  • Instant mobile UI apps with our no-code App Creator
  • Easy, rapid customization and cloud integration



Try TapNLink with No-Code NFC App Creator

Create user interfaces as iOS, Android or Web apps without writing a line of code. Our free App Creator is available to all users of TapNLink wireless modules. Just get a TapNLink PRIMER, then sign up here, and try it today!



Request Beta Test Access from contact@iotize.com


TapNLink NFC Modules & Key Features



  Wireless
Protocols
LPWAN
Protocols
Wire
Protocols
Modbus lwM2M JVM Power Consumtion
(Idle)
Typical Uses Availability
TnL-FIT203 NFC   S3P, SWD, UART 1 mA | -3 mA* (1 µA)
TnL-FIR103 NFC, BLE   S3P, SWD, UART 20 mA (80 µA)
TnL-FIW103 NFC, BLE, Wi-Fi

S3P, SWD, UART

180 mA (80 µA)
TnL-FIL103 NFC LoRa S3P, SWD, UART 40 mA (0.4 µA)
TnL-FIL113 NFC, BLE LoRa Ethernet 40 mA (0.4 µA)

   Yes             No             NFC 3-stroke configuration                Configuration             On-site monitoring          .  Remote Supervision

Note *: NFC modules can be configured to harvest energy from the mobile during use.



Not sure what product you need?  Contact us today for a personal demonstration...




TapNLink

TapNLink BLE, NFC

TnL-FIR103-

TapNLink BLE, NFC (Type5) module for local connection of mobiles to microcontroller-based electronic systems.

Packing: Tray, 10 modules.
Android, iOS, Windows compatible.
CE, FCC, IC, ROHS, WEEE

Request a quote.

TapNLink BLE, NFC

TnL-FIR203

TapNLink BLE, NFC (Type5) module for local connection of mobiles to microcontroller-based electronic systems.

Packing: Tray, 10 modules.
Android, iOS, Windows compatible.
CE, FCC, IC, ROHS, WEEE

Request a quote.

TapNLink NFC

TnL-FIT203

TapNLink NFC (Type5) module for local connection of mobiles to microcontroller-based electronic systems.

Packing: Tray, 10 modules.
Android, iOS, Windows compatible.
CE, FCC, IC, ROHS, WEEE
Android, iOS, Windows compatible.
...

Request a quote.

TapNLink WiFi, BLE, NFC

TnL-FIW103

TapNLink module Wi-Fi, BLE, NFC (Type5) for local connection of microcontroller-based electronic systems to mobiles or to the Cloud

Packing: Tray, 10 modules.
Android, iOS, Windows compatible.
CE, FCC, IC, ROHS, WEEE

Request a quote.

Evaluation Kits

TapNLink Primer NFC-BLE-WiFi

IOTZ-TAPNLINK-PRIMER-NBW

TapNLink Primer evaluation kit for implementing TnL-FIW103 modules with Wi-Fi, BLE and NFC for interfaces connecting MCU-based electronic systems...

Android, iOS compatible. ArdTap library for Arduino integration.

59.00 €
