How does TapNLink work with Arduino?

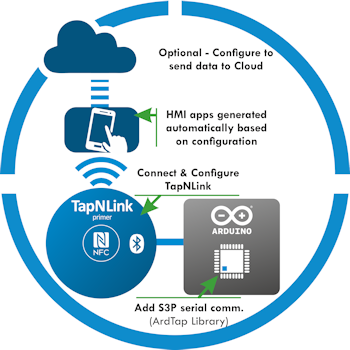

Connect TapNLink to Arduino

In your Arduino application code, you will add a software serial port (aka. S3P) on two GPIOs of your microcontroller. S3P is the access way for reading and writing values in the application. The code you will need is provided in the ArdTap library in the Arduino IDE.

The TapNLink wireless module includes its own processor with an agent that you will configure with the locations of data (a.k.a. variables) that you want to view or change using your mobile HMI. You will use a free configuration software called IoTize Studio to do this.

When you configure the TapNLink wireless module, that configuration automatically creates the first user interface app (the HMI app). This app is, for the most part, HTML5 with some JavaScript, which makes it very easy to manipulate and modify. This is possible because IoTize provides you a low level app called Tap Manager, which manages all the communication interfaces on the mobile device.

How it Works with Arduino
Arduino Design Resources
Supported Mobiles for HMI on Arduino
TapNLink Compatible Arduino Boards

Evaluation Kits

TapNLink Primer NFC-BLE-WiFi

IOTZ-TAPNLINK-PRIMER-NBW

TapNLink Primer evaluation kit for implementing TnL-FIW103 modules with Wi-Fi, BLE and NFC for interfaces connecting MCU-based electronic systems...

Android, iOS compatible. ArdTap library for Arduino integration.

59.00 €
