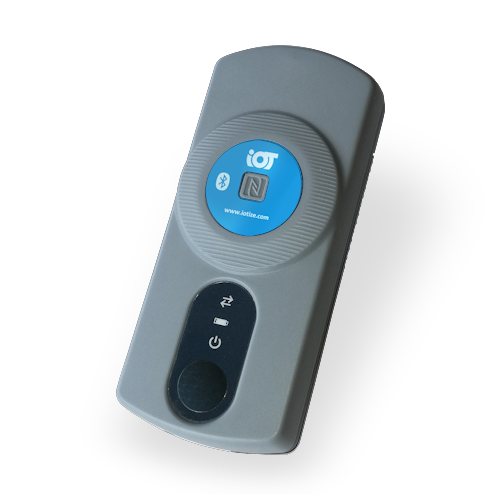

TapNPass Nomad NFC-BLE to Serial fieldbus adapter

TapNPass Nomad BLE and NFC (Type5) wireless adapter for local connection of mobile devices to electronic systems via RS-232, RS-485 or USB fieldbus. Supports Modbus protocol.

Order : TnP-NSR103

230 €
TapNPass Nomad NFC-BLE to Serial fieldbus adapter

TapNPass Nomad products provide portable, wireless interfaces for connecting mobile devices to target systems with serial fieldbus or Modbus interface. To facilitate use as a portable tool, Nomad products include:

  • Rechargeable battery power supply ensuring more than 8 hours of autonomy in continuous communication
  • Magnets to hold the product against a support while in use

All TapNPass products are easily configured to control access by different types of users who conduct or supervise servicing of target systems. TapNPass facilitates rapid creation of user interfaces that run on Android, iOS and Windows-based mobile devices.

Buy TapNPass Nomad at Digi-Key !

Key Features

Wireless Channels

  • Near Field Communication (NFC) Type5 tag (ISO/IEC 15693)
  • Bluetooth Low Energy (BLE) 4.1
Supported Serial Connections
  • RS-232, RS-485 et USB (protocoles CDC, FTDI and Silabs CP210x).
  • Transparent or Modbus service modes.

Mobile Platform Support

  • HTML5 generic applications
  • API for Cordova (Android, iOS, Windows 10) or Android native (Java)

Security

  • Configurable access profiles
  • Configurable, encrypted passwords
  • AES-128/256 module-level data encryption
  • Configurable secure pairing with NFC

Casing

  • ABS plastic casing with rechargeable Li-Ion batteries.
  • Dimensions: L 105mm x  H 33mm x W 46mm
  • Weight (without cables): 110g

Electrical Characteristics

  • Input voltage: 5V (micro USB connector)
  • Battery capacity: 1300 mAH
  • Power consumption: from 10mA to 80mAH (depending on communication channel)
  • Output current (USB host) up to 200mA

Operating Temperature Range

  • -10°C, +50°C

Compliance

  • CE (Europe), FCC (USA), IC (Canada).
  • REACH
  • RoHS
  • WEEE

Ordering Information

Base Part Number:  TnP-NSR103
MOQ: 1
Price includes:

  • TapNPass-N NFC/BLE to Serial fieldbus adapter pre-programmed and ready to configure
  • RS-232 serial cord (RJ45 to DB9)
  • RS-485 serial cord (RJ45 to DB9)
  • Modbus adapter (RJ45 to RJ45)
  • Micro USB cable
  • Li ION rechargeable batteries
  • IoTize Tap Toolbox Serial/Modbus utilities app for Android and iOS mobile devices
  • IoTize Studio configuration and testing software
  • Cordova support for mobile HMI development and customization
  • IoTize Cloud MQTT infrastructure (open source)

TapNPass TnP-NSR103 kit contents
