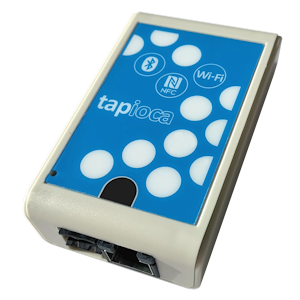

Tapioca - Wi-Fi, NFC, Bluetooth to Ethernet adapter

Tapioca Wi-Fi , NFC (Type 5), Bluetooth wireless adapter for connection of mobile devices and networks to electronic systems via Ethernet fieldbus. DIN rail casing. Supports Modbus-TCP.

Tapioca allows industrial systems to send data to mobile devices or to be networked by providing plug-and-play, configurable NFC, Bluetooth (BLE) and Wi-Fi wireless interfaces that connect on any accessible Ethernet fieldbus or Modbus port. Tapioca integrates with, and is powered by the target system.

All Tapioca products are easily configured for secure connection with mobile devices and encrypted data transmission. With our Automatic App Generator, Tapioca facilitates rapid creation of human-machine interfaces (HMI) that run on Android, iOS and Windows-based mobile devices.

Key Featuress

Wireless Channels

• Near Field Communication (NFC) Type5 tag (ISO/IEC 15693)
• Bluetooth Low Energy (BLE) 4.2
• Wi-Fi (802.11 b/g/n)

• Ethernet (802.3)
• Modbus-TCP

Mobile Platform Support

• HTML5 generic applications
• Automatic app generator (iOS, Android)
• Cordova API (Android, iOS, Windows 10) or Android native (Java)

Security

• Configurable access profiles
• Configurable, encrypted passwords
• AES-128/256 module-level data encryption
• Configurable secure pairing with NFC

Casing

• DIN rail plastic casing.
• Dimensions: L 80mm x  H 50mm x W 19mm
• Weight (without cables): 40g

Electrical Characteristics

• Input voltage: 6V to 28V
• Power consumption: from 11mA to 58mAH at 12V DC
• Standby mode: 0.460 mA

Operating Temperature Range

• -40°C, +50°C

Compliance

• CE (Europe), FCC (USA), IC (Canada).
• REACH
• RoHS
• WEEE

Ordering Information

Base Part Number: TpC-FE0W123
MOQ: 1
Price includes:

• Tapioca Wi-Fi, NFC, Bluetooth to Ethernet fieldbus adapter pre-programmed and ready to configure
• IoTize Tap Toolbox Serial/Modbus utility app for Android and iOS mobile devices
• IoTize Studio configuration and testing software
• Automatic app generator (iOS, Android)
• IoTize Cloud MQTT infrastructure (open source)
